Standard European 4 Bolt Pump Flange (LS/LSE/LBS Type)

Standard European 4 Bolt Pump Flange (LS/LSE/LBS Type)

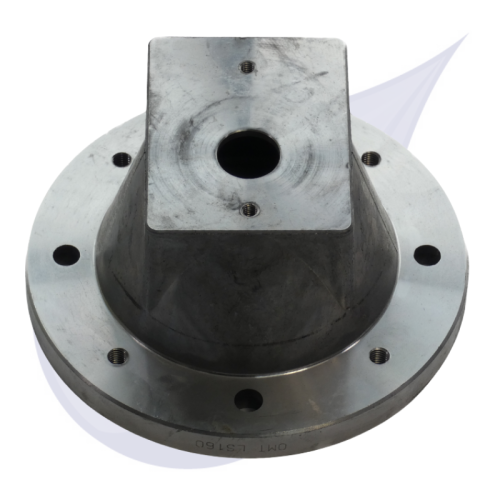

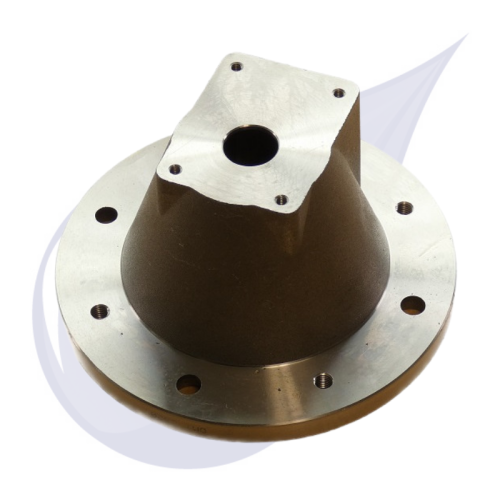

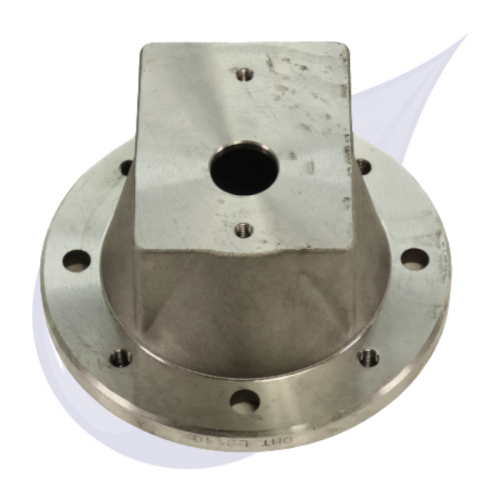

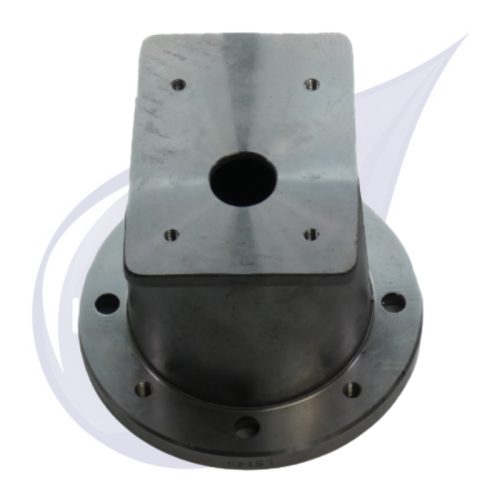

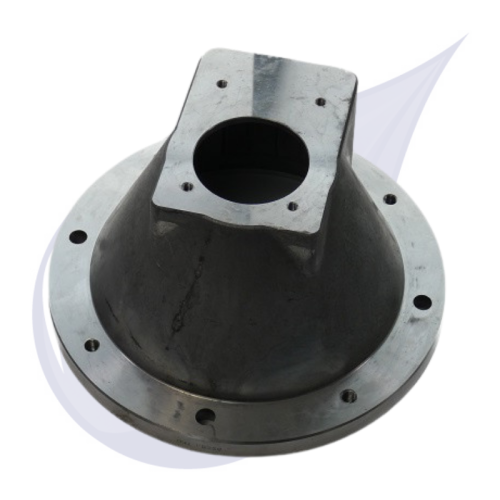

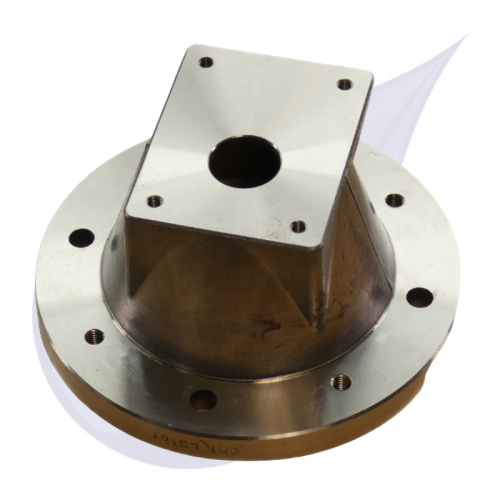

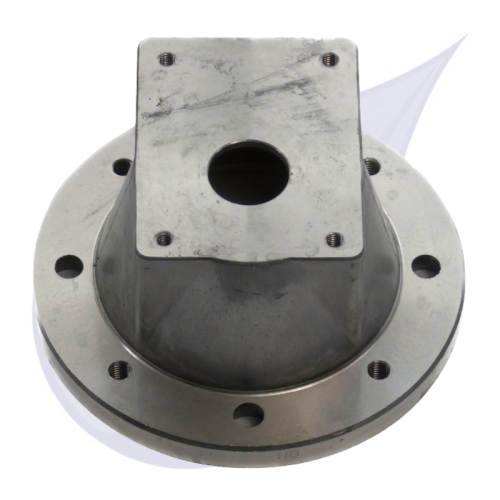

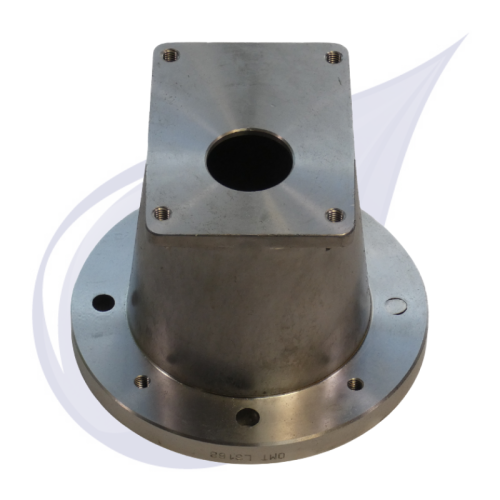

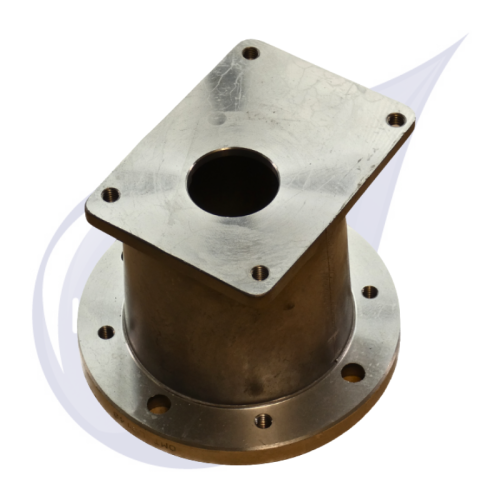

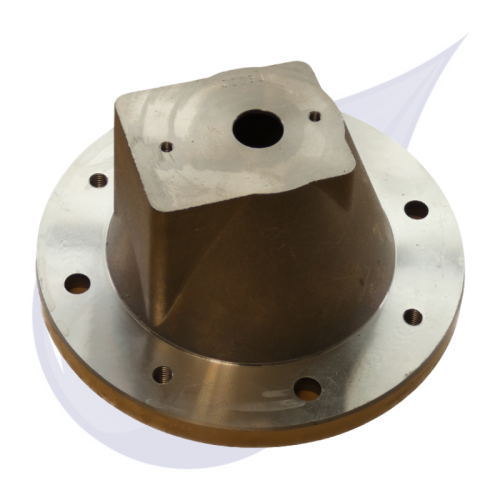

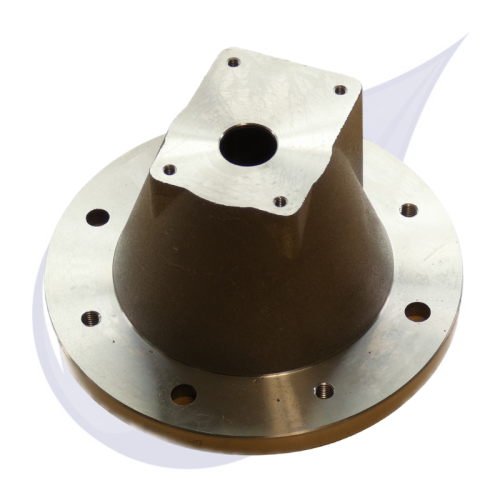

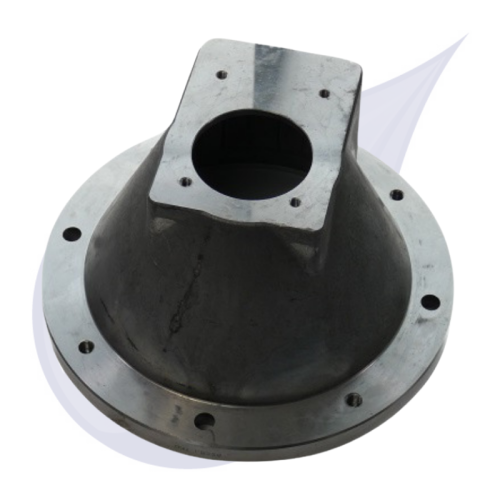

Our range of LS bell housings are manufactured from aluminium alloy. Bell Housing are used in conjunction with the appropriate drive coupling to establish a connection between the hydraulic gear pump with a standard 4 bolt European flange and to an electric motor with sizes ranging from D63 frame to D250 frame and up to 55 Kw in power.
