Home /
Bell Housings & Drive Couplings /
Bell Housings for Electric Motors /
Standard European 4 Bolt Pump Flange (LS/LSE/LBS Type)

Standard European 4 Bolt Pump Flange (LS/LSE/LBS Type)

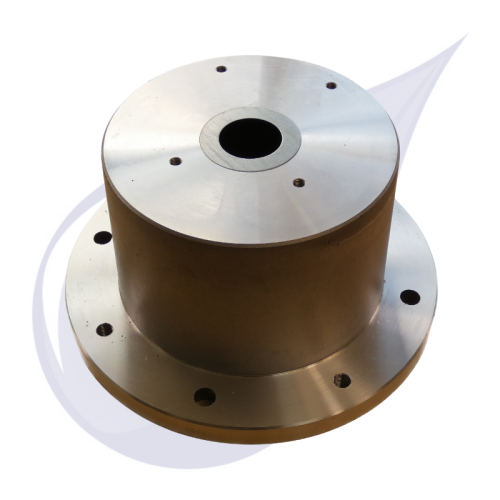

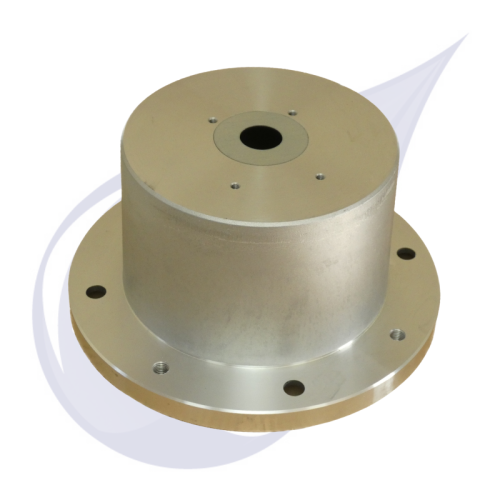

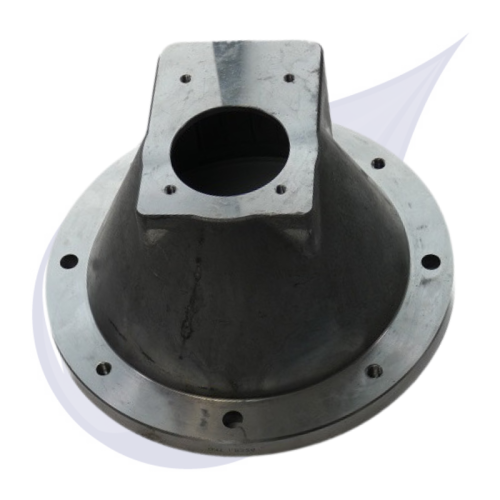

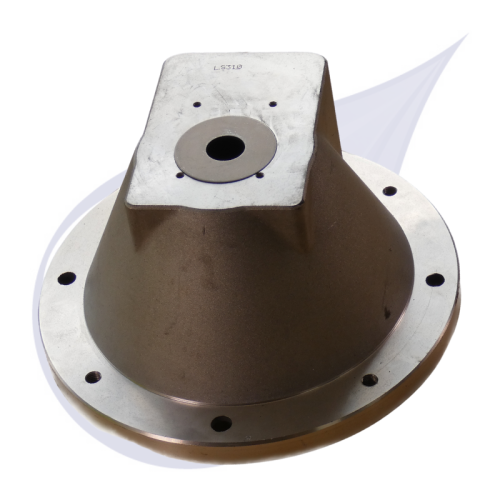

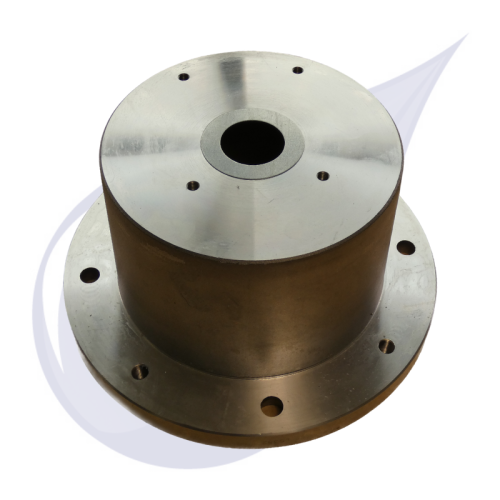

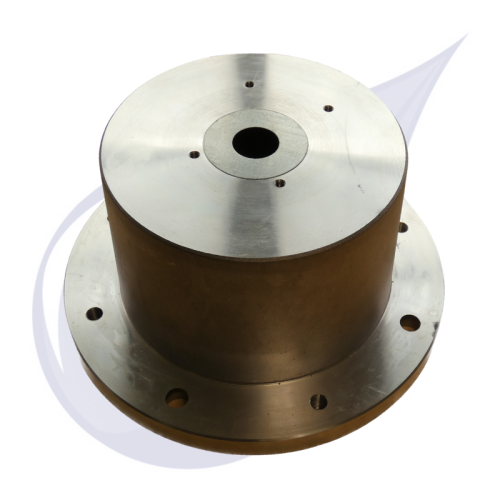

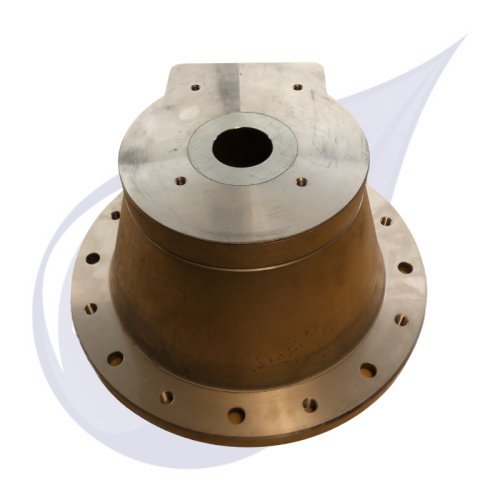

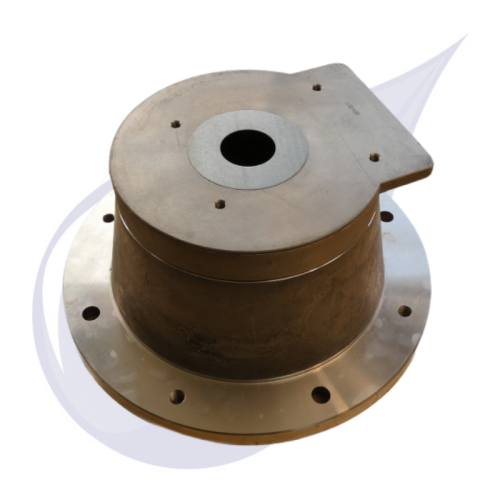

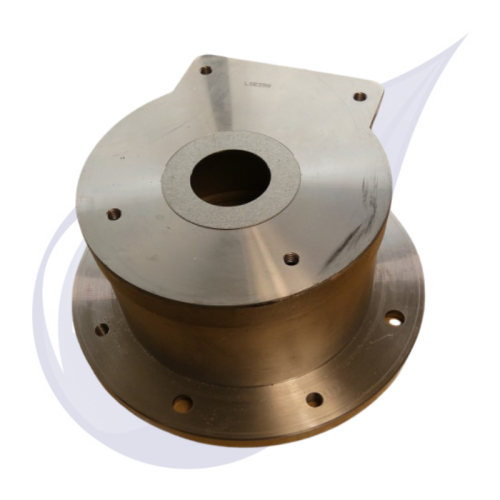

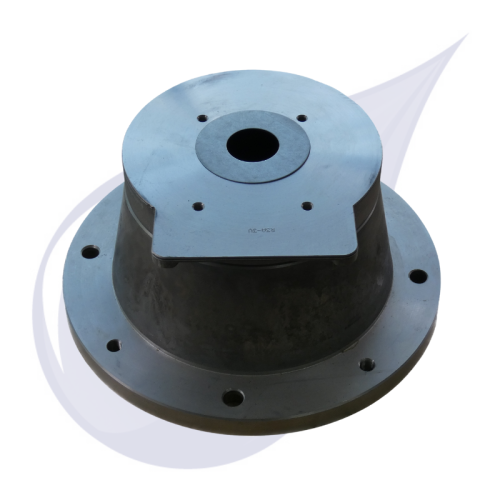

Our range of LS bell housings is manufactured from aluminium alloy. Bell housings are used in conjunction with the appropriate drive couplings to establish connections between the hydraulic gear pump with a standard 4 bolt European flange to an electric motor with sizes ranging from D63 frame to D250 frame and up to 55 KW in power.
